Flying Man Asynchronous Die Cutting Machine Application Process
Asynchronous die cutting has different types, choose the right asynchronous machine can be "material saving" for your products.
Because of its relative compared to the traditional flatbed die cutting, Asynchronous die cutting has a higher utilization rate of raw materials, time-saving and efficient superior performance, more and more die cutting manufacturers used it.
Flying Man Asynchronous die cutting machine is divided into in-mold asynchronous die cutting machine and out-mold asynchronous die cutting machine.

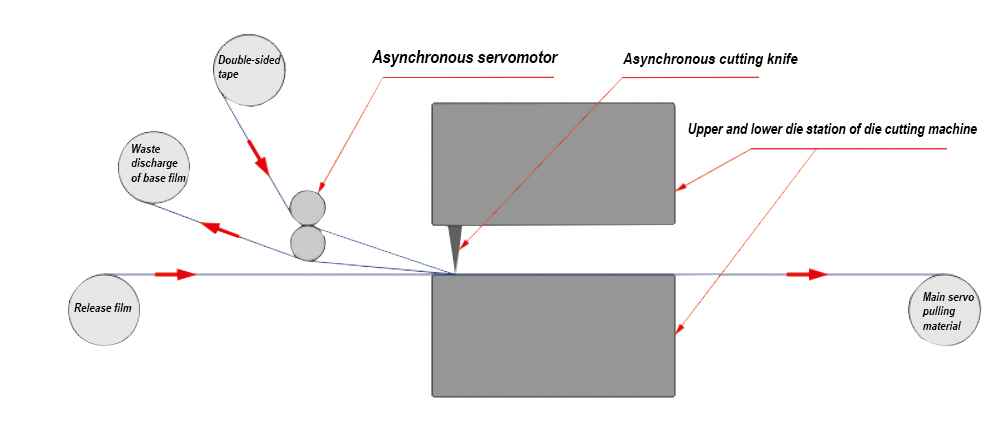

.In-mold asynchronous die cutting machine
The advantages and disadvantages of in-mold asynchronous die cutting machine.
1. Simple structure design, small scope of change to the original equipment, low cost, easy to operate.
2. When asynchronous cutting, the asynchronous cutting knife and the product forming knife are on the same knife plate and are equidistant in design. It is less affected by the accuracy of the feeding material of the equipment, has strong stability and the product is not easy to deviate.
3. It has obvious processing advantages for some special asynchronous products.
4. According to its working principle diagram, it can be seen that asynchronous cutting is directly acting on the bearing film below, so in the processing of mouth type double-faced adhesive products, the traces of the cutter will be left on the product cover, affecting the appearance of the product.
5. In addition, because of the asynchronous cutting in the mold cavity, there is a certain distance between the asynchronous cutting knife and the molding tool die will occupy the range of the original mold cavity, thus affecting the punching size of the whole product.
The application of in-mold asynchronous die cutting machine
1.Mouth shape double-sided adhesive asynchronous
2.Diffusion, reflector sheet four sides gum asynchronous
3.No chamfering layers shape consistent rectangular products with no waste asynchrony
4.L-type product single bilateral combination asynchronous

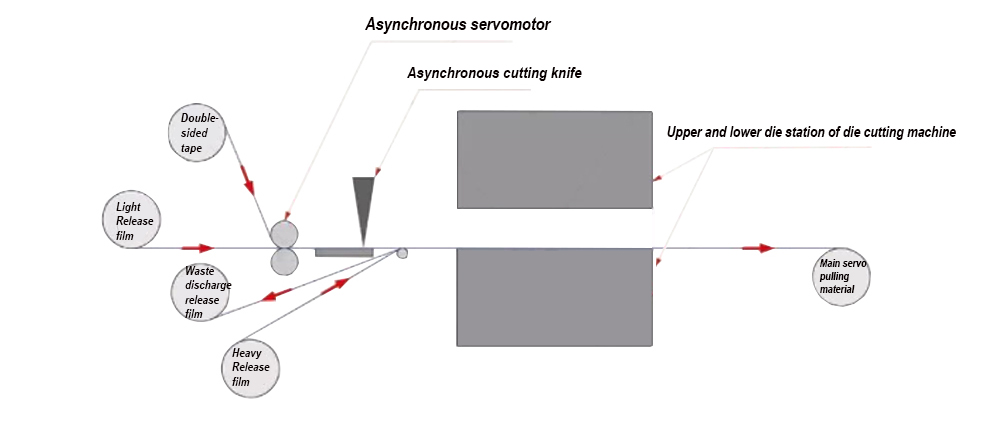

.Out-mold asynchronous die cutting machine
The advantages and disadvantages of out-mold asynchronous die cutting machine.
1. Asynchronous cutter line does not directly act on the bottom bearing film, the product appearance is more beautiful.
2. Using external cutting knife mode, die base punching area is not affected by the cutting knife.
3. It can achieve multiple unequal asynchronous cutting, cutting FPC backlight tape has advantages.
4. Due to the use of external cutter design, the equipment structure is relatively complex, the cost will be increased.
5. Relative to the in-mold asynchronous die cutting machine, the pulling distance becomes longer, and the distance between the asynchronous strips is larger.
6. Affected by its structure, such as L-type asynchronous, local special-shaped one-time molding products such as this model is not applicable.
The application of out-mold asynchronous die cutting machine
1.FPC flexible circuit board backlight tape mouth shape double sided adhesive asynchronous
2.Mouth shape double-sided adhesive asynchronous
3.Diffusion, reflector sheet four sides gum asynchronous
